Kawasaki Teryx H2 Tree Kickers Installation Instructions For Models: Teryx H2 (2026-2026)

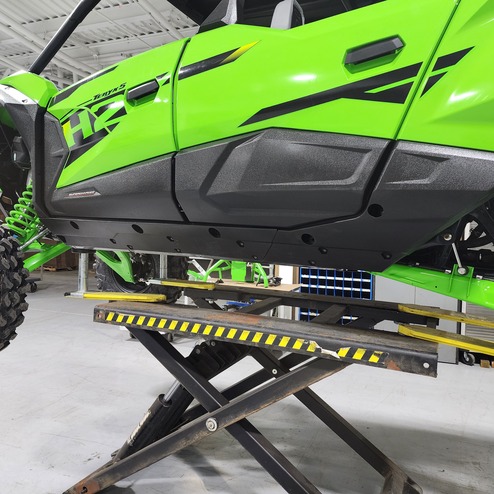

1. Begin by using a 1-3/4" step drill bit or hole saw to drill out the Factory Tree Kicker mounting points located with the dimples on the rocker panels. (Note: due to the angle of the face of the rocker panel, it may be necessary to use a rotory or dremel tool to refine the shape of the hole into a ellipse).

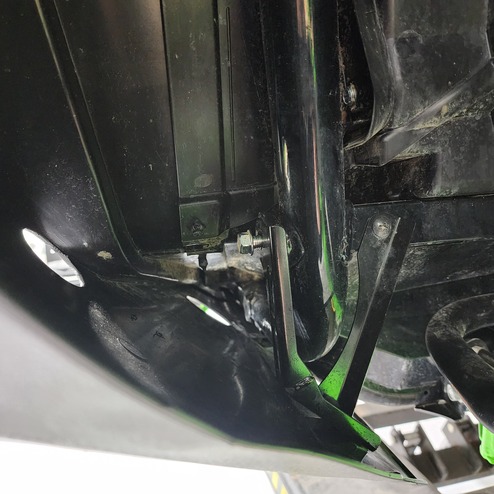

2. With the holes drilled, remove the factory flange head bolt from the rear most mounting points.

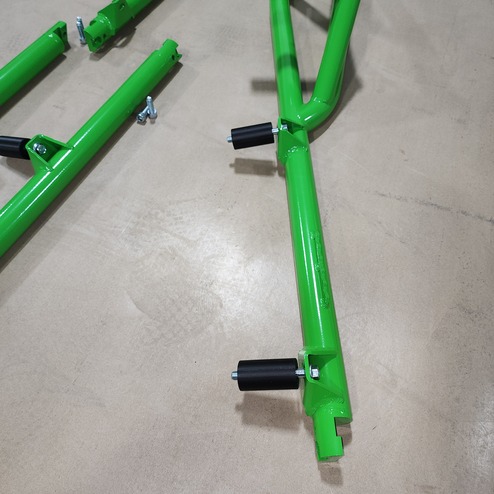

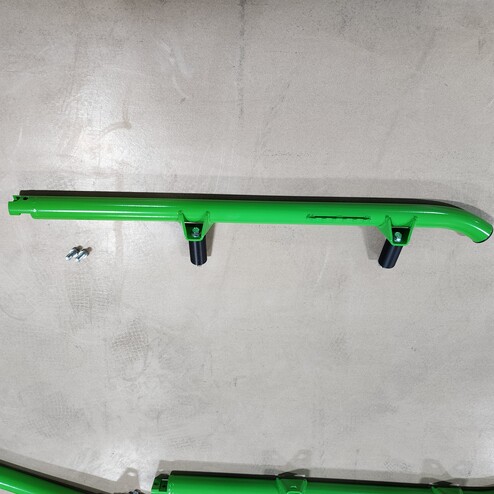

1. Begin by pre-installing the provided (2x Aluminum Spacers, 2x M10-1.25x90 Flange Head Bolts) onto the rear section of the HMF Tree Kicker as shown.

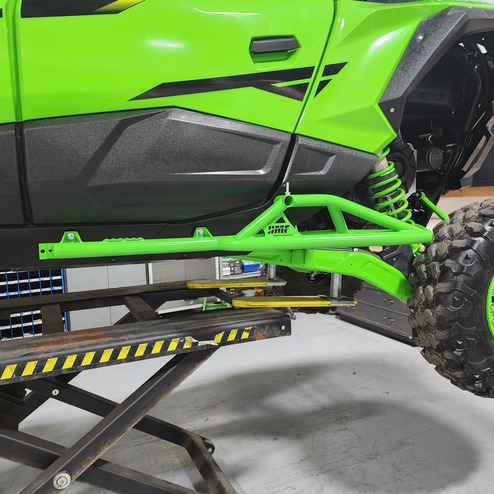

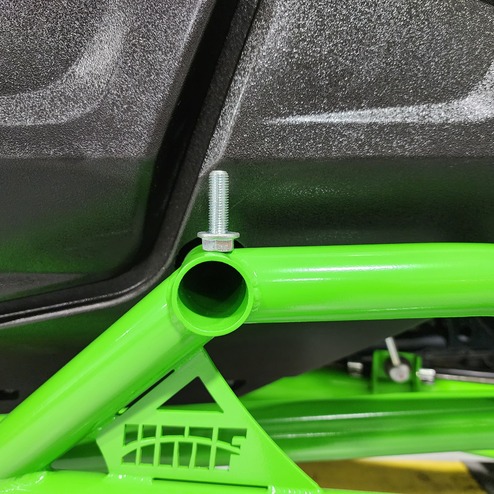

2. With the hardware in place on the HMF Tree Kicker insert the long mount tube through the rear most hole in rocker panel, and start the bolts on the other two mounts.

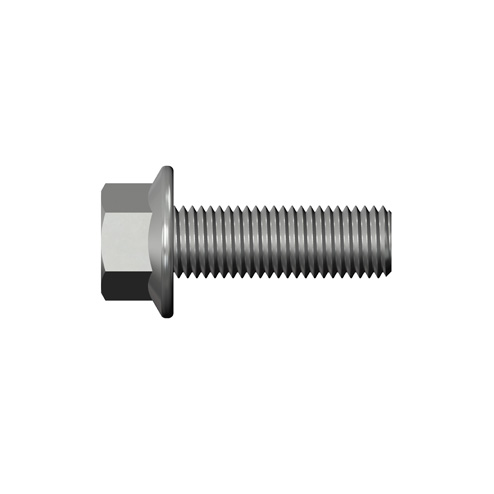

3. With the provided (M10-1.25x30 Flange Bolts) loosely secure the Rear Long Tube Mount to the Frame.
4. Next use provided (2x Aluminum Spacers, 2x M10-1.25x90 Flange Head Bolts) and pre-install them onto the front section of the HMF Tree Kicker.

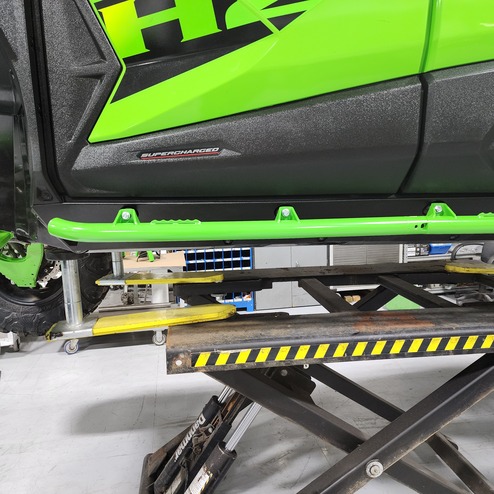

5. Once the Aluminum Spacers and Bolts are in place loosely secure the front portion of the HMF Tree Kicker to the vehicle.

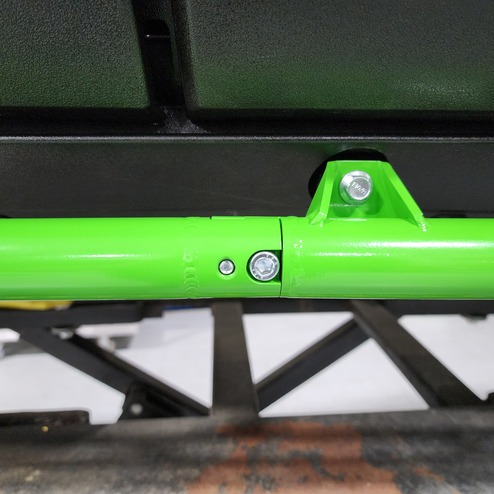

6. With both the Front and Rear sections in place align and secure together using the provided (2x M10-1.5x30 Allen Bolts).
7. Make any final positioning adjustments and tighten all hardware.

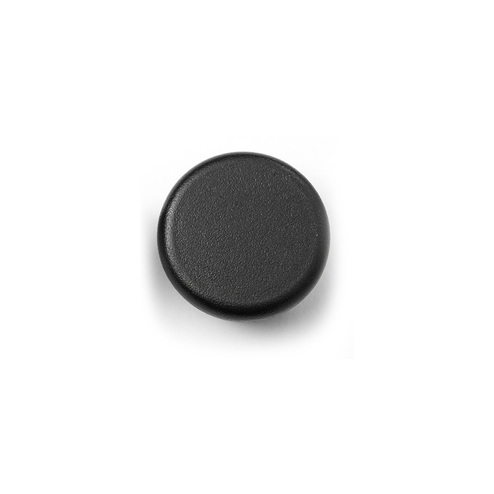

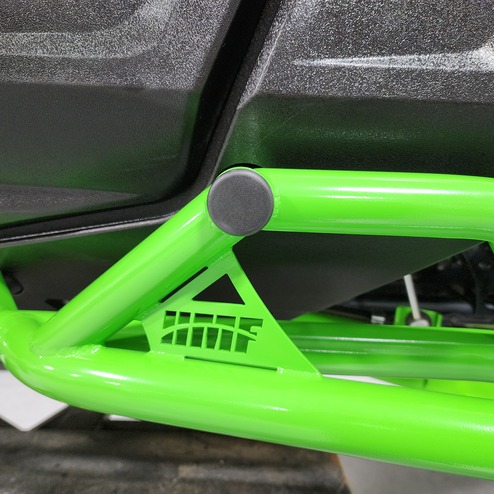

8. Finally install the provided 1-1/2" Bumper cap into the long tube mount as shown.
9. Repeat these steps for the other side of the vehicle.
